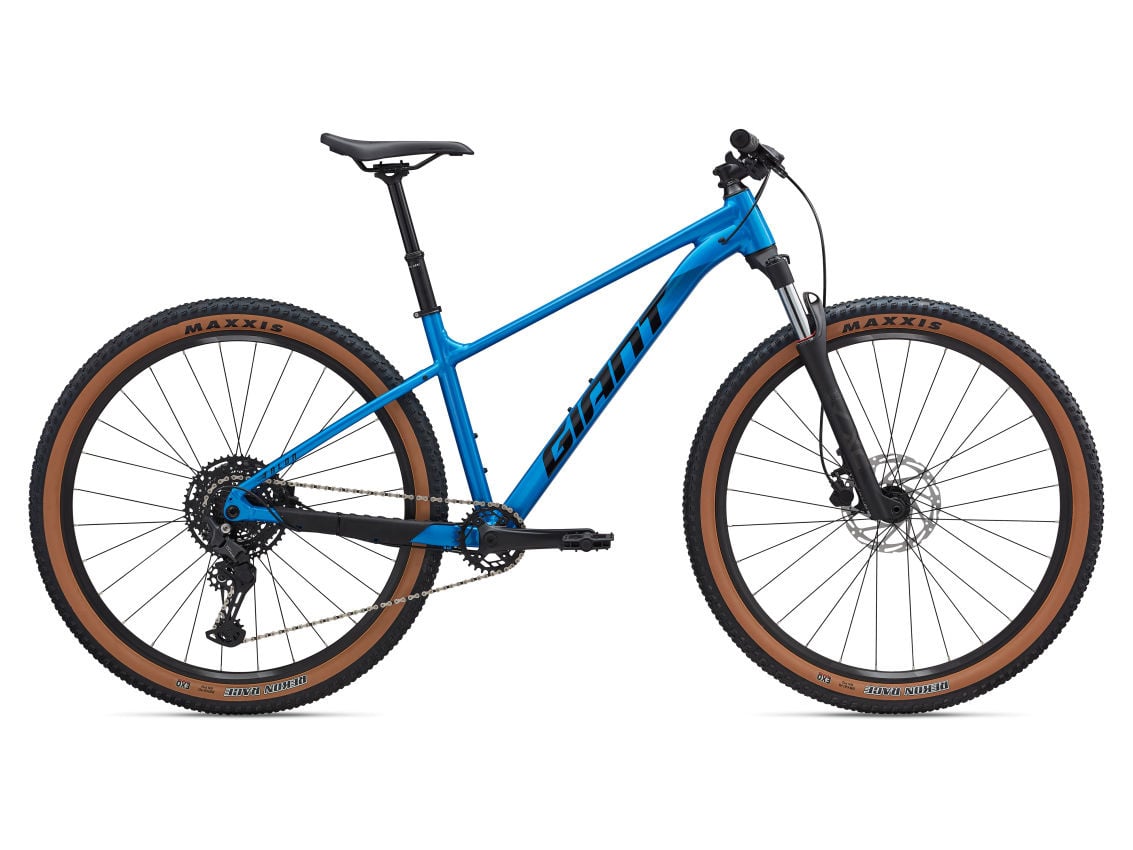

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance.
With Dropper Post.
Key Performance Factors
Modern MTB Design
Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
Off-Road Control
New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.
Light and Durable
All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
SPECS:
Sizes: L 29"
Colours: Metallic Blue
Frame: ALUXX-grade aluminum, disc

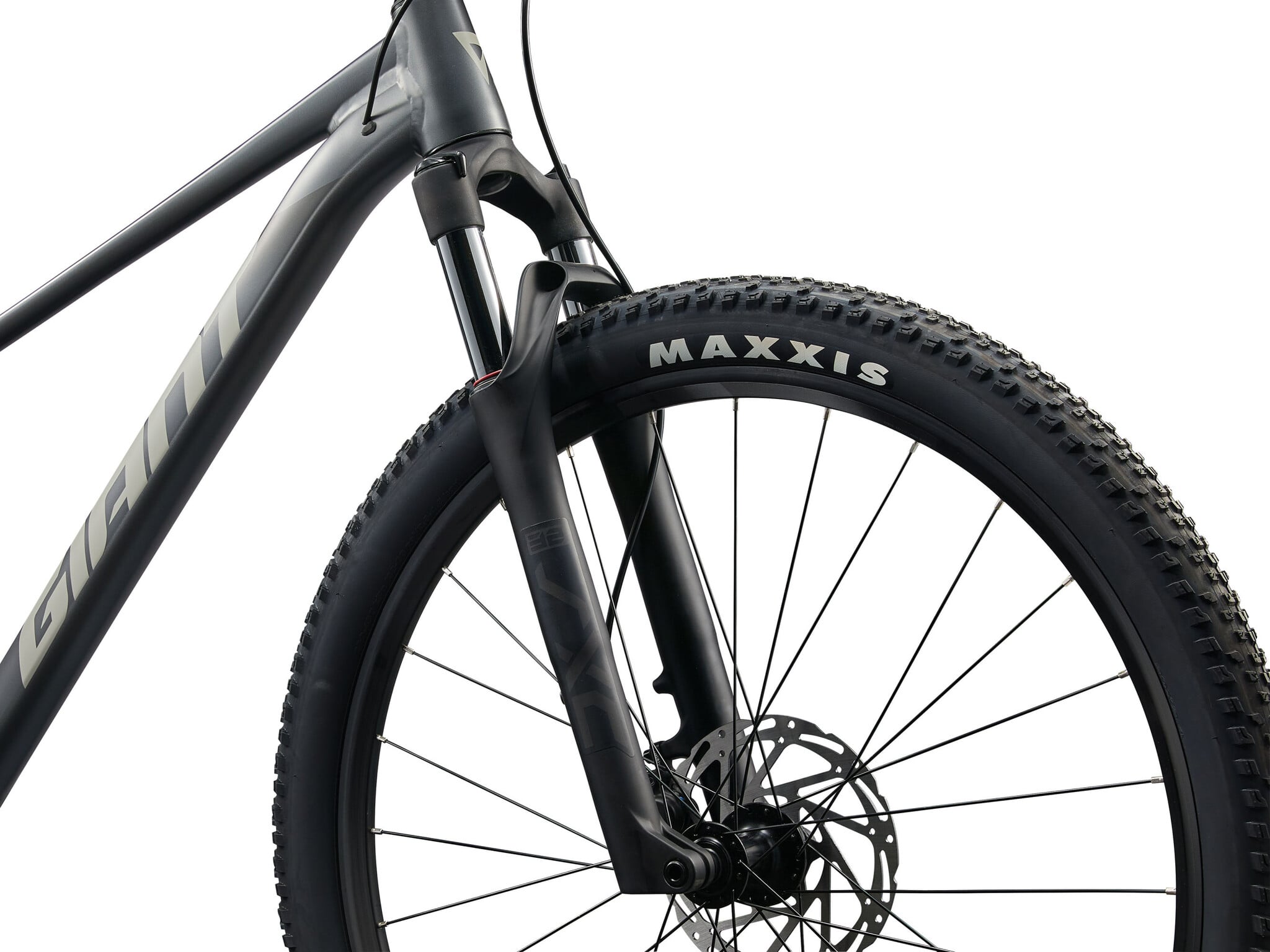

Fork: Giant SXC32-3 RL, coil spring, 1.5" tapered alloy steerer, 15x110mm thru-axle, XS,S: 80mm (27.5), S, M, L, XL: 100mm (29)
Handlebar: Giant Connect Trail, 31.8mm
Grips: Giant Sole-O
Stem: Giant Sport, 7-degree

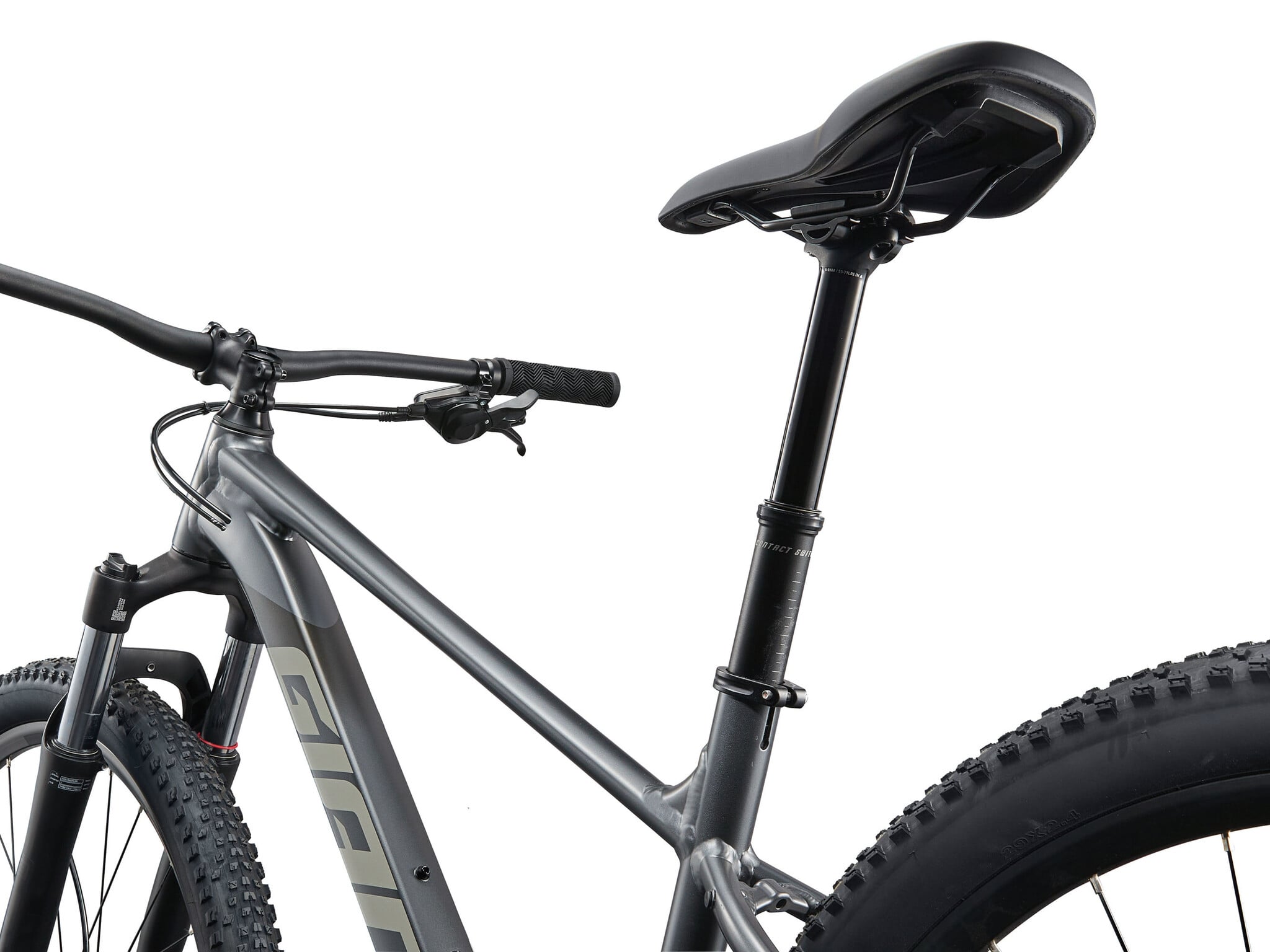

Seatpost: Giant Contact Switch Core dropper, remote, XS, S: 100 travel / 30.9 x 350mm, M-XL: 120 travel / 30.9 x 400mm
Saddle: Giant ErgoContact Trail
Shifters: Shimano CUES U6000, 1x10
Front Derailleur: N/A

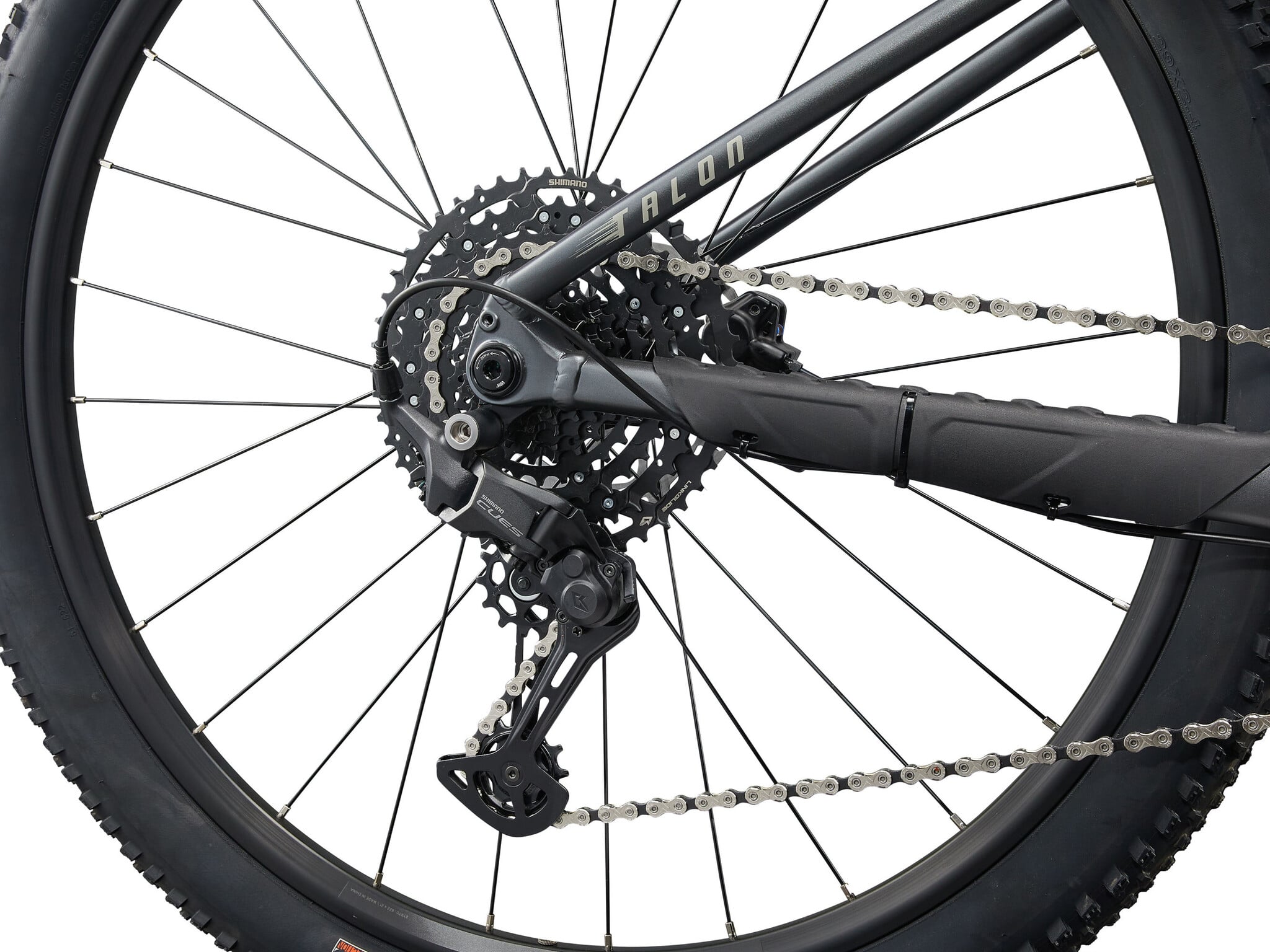

Rear Derailleur: Shimano CUES RD-U6000, clutch
Brakes: Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers: Tektro HDC M275

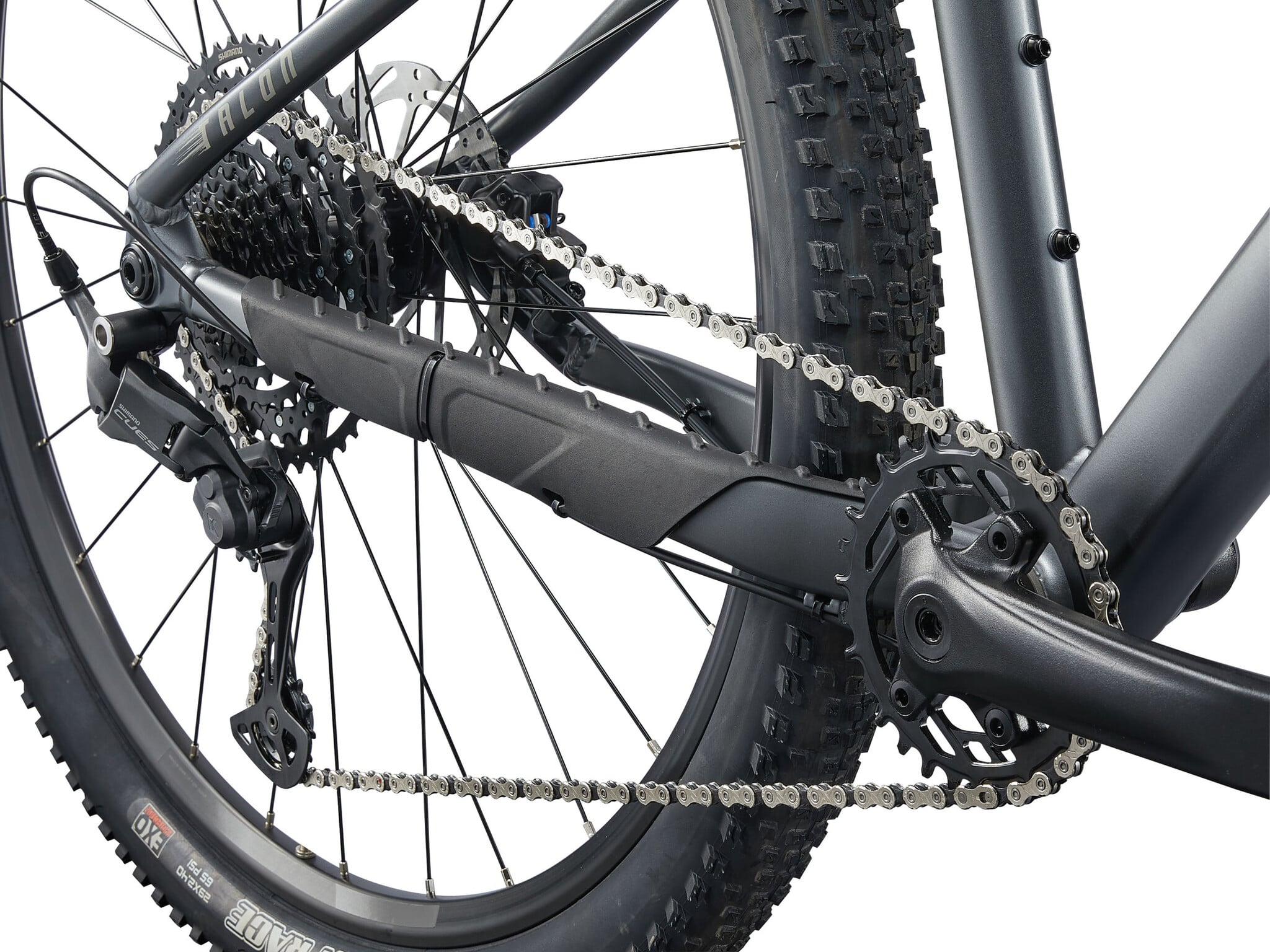

Cassette: Shimano CUES, LinkGlide, 10-speed, 11x48
Chain: KMC X11
Crankset: ProWheel Charm, [27.5] 32t, [29] 30t, 52.5mm chainline 32t
Bottom Bracket: cartridge
Rims: Giant GX03V 27.5 or 29, alloy, double wall, 21mm IW
Hubs: alloy, sealed bearing, [F] 15x110 thru axle, [R] 12x142 thru-axle
Spokes: stainless
Tires: Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", 60 TPI, wire bead
Extras: 2.4" max tire size, max chainring 32t
