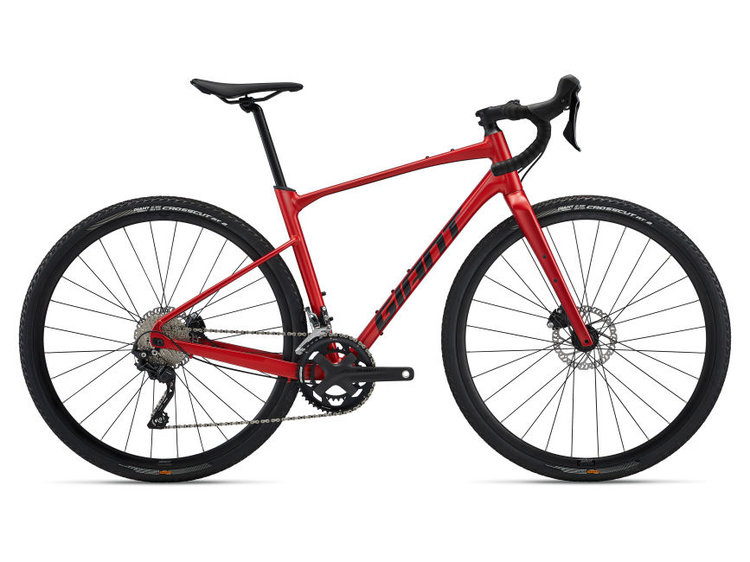

Revolt 1

Pay as little as C$62.5 per month with

Color:

Size:

C$2,249.00

Out of stock

Description

Ride roads, gravel or dirt with this all-new aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance. New frame features thinner, dropped seatstays to absorb road shocks and vibrations.

Details

Key Performance Factors

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Sizes

XS, S, M, M/L, L, XL
Colours

Grenadine, Deep Lake
Frame

ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fork

Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock

N/A
Handlebar

Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips

cork tape with gel
Stem

Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost

Giant D-Fuse, alloy, 14mm offset
Saddle

Giant Approach
Pedals

N/A
Shifters

Shimano GRX RX-400, 2x10
Front Derailleur

Shimano Tiagra
Rear Derailleur

Shimano GRX RX-400
Brakes

Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers

Shimano GRX RX-400 hydraulic
Cassette

Shimano HG500, 11x34
Chain

KMC X10 with Missing Link
Crankset

FSA Omega Adventure, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket

FSA Mega EXA, press fit
Rims

Giant S-X2 Disc wheelset
Hubs

Giant S-X2 Disc wheelset
Spokes

Giant S-X2 Disc wheelset
Tires

Giant CrossCut AT 2, 700x38c, tubeless
Extras

tubeless prepared, 45mm max tire size in "long" flip chip position, 40mm max tire size in "short" flip chip position (due to Tiagra F.Der. arm clearance)
Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All prices and specifications are subject to change without notice.
