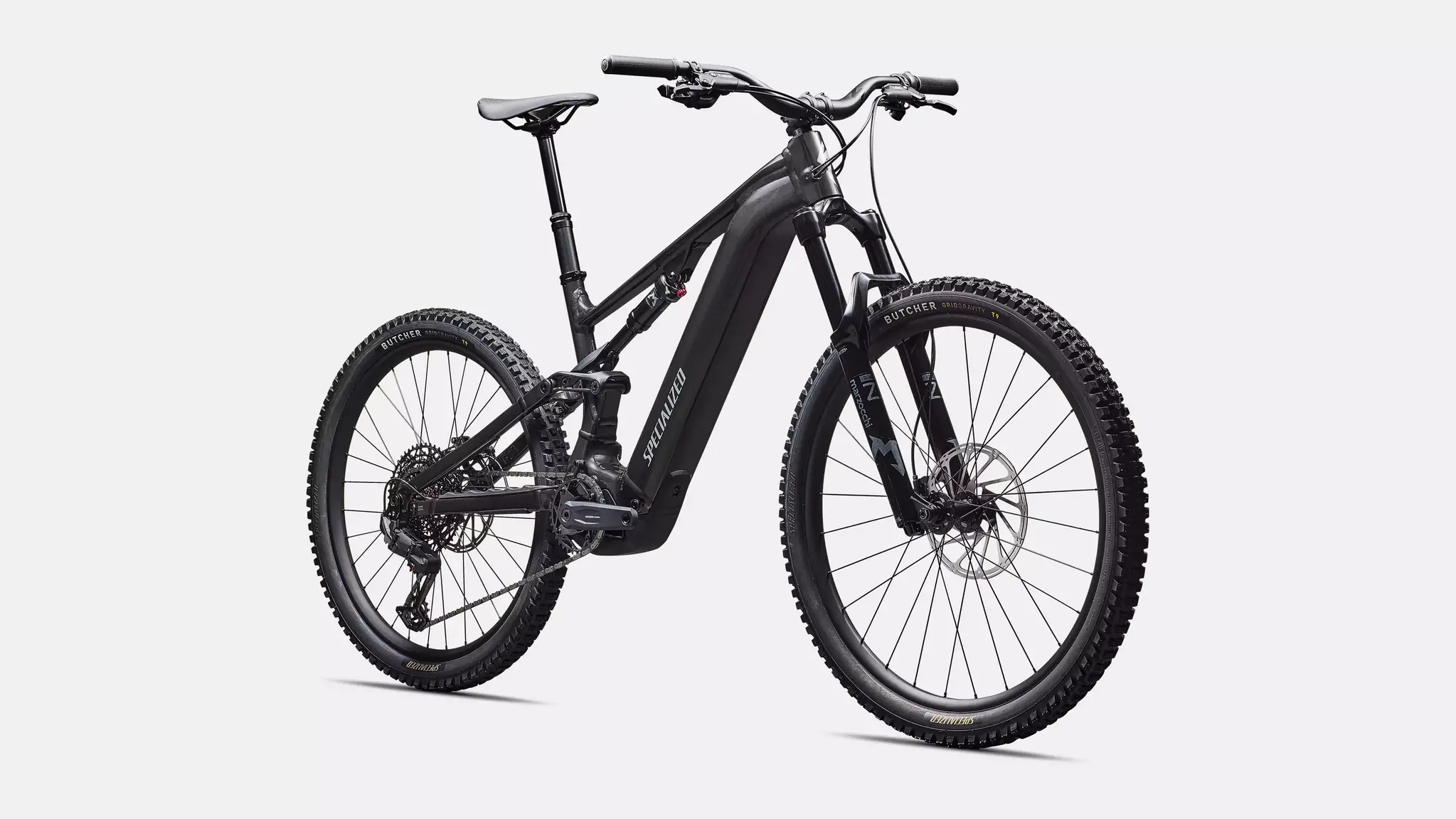

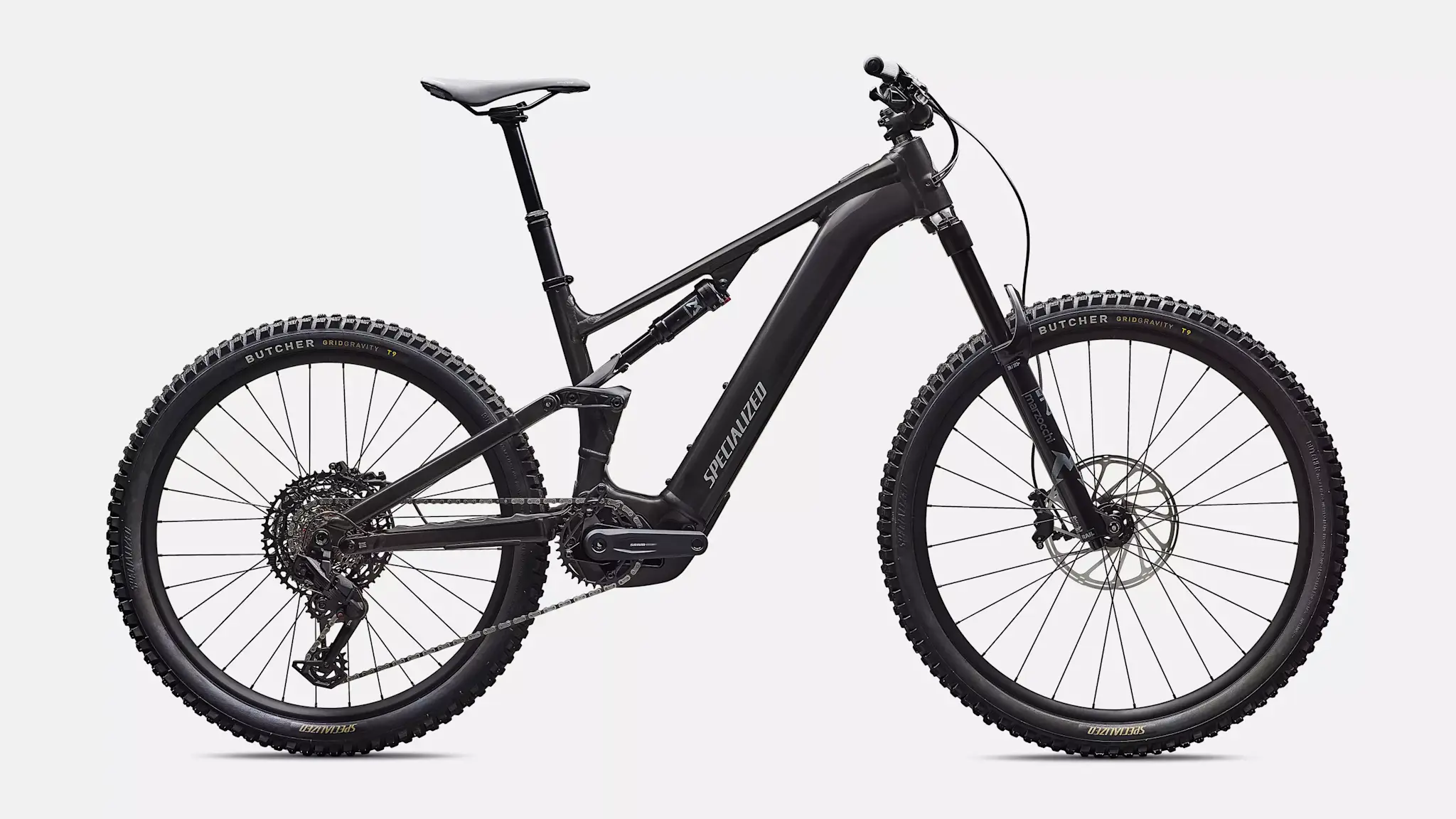

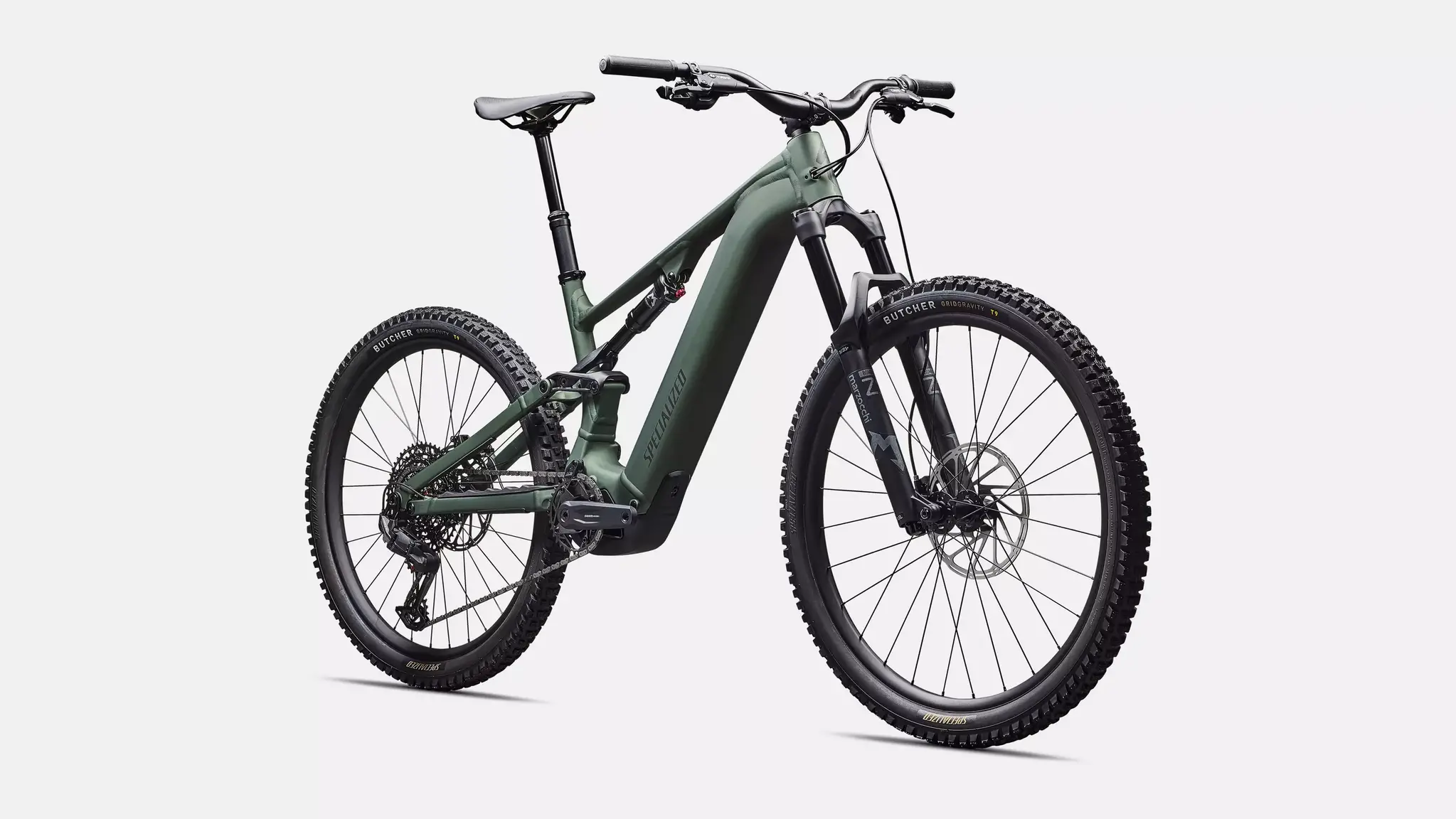

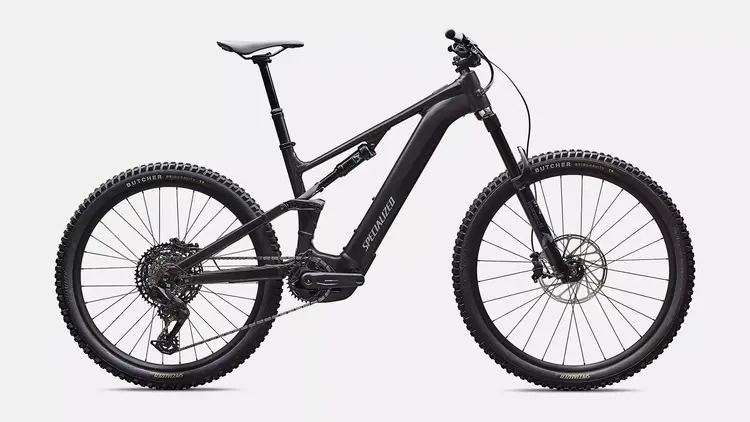

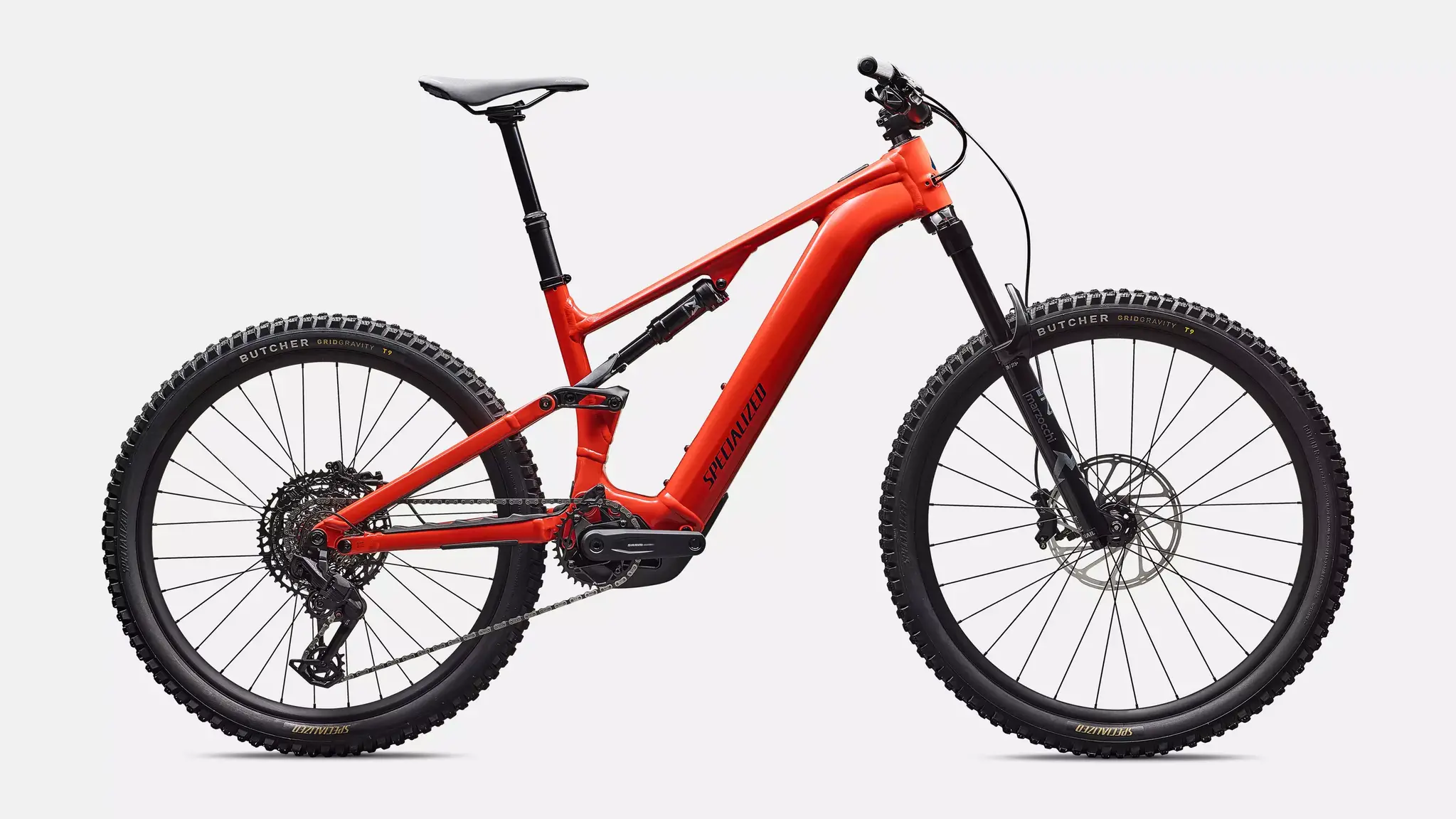

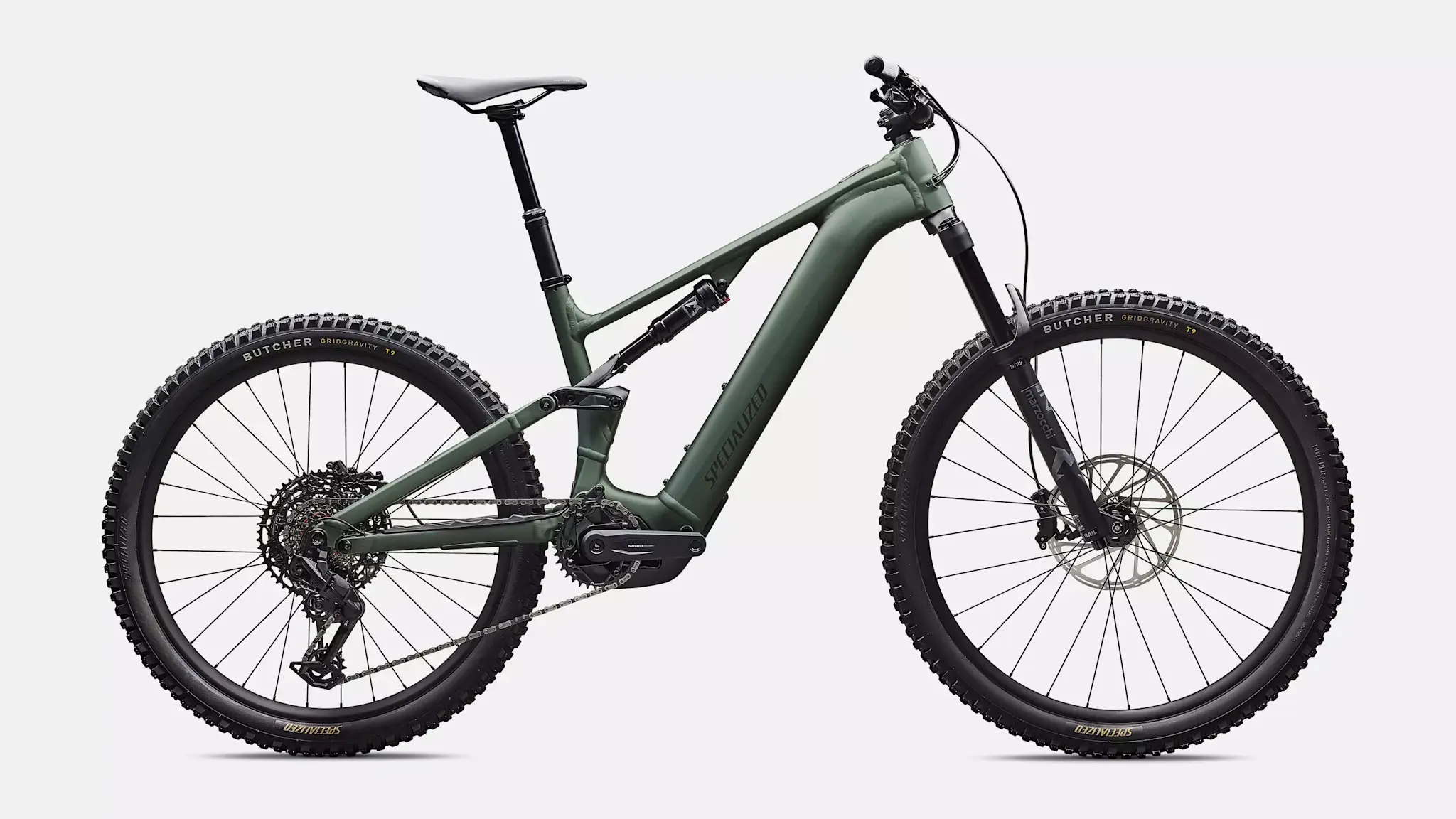

Specialized Turbo Levo 4 Alloy
Where Super Meets Natural
The all-new Turbo Levo 4 Alloy brings full-power trail performance to an accessible, bombproof aluminum chassis — delivering the same SuperNatural experience as its carbon sibling. Powered by the next-generation Specialized 3.1 motor with 666 watts of peak output and 101 Nm of torque, it pairs with a massive 840 Wh battery for up to 5.3 hours of assisted range. The M5 Alloy frame combines adjustable geometry, mixed-wheel agility (29” front / 27.5” rear), and SWAT storage for versatility and confidence on every trail. With Marzocchi Bomber suspension, SRAM Eagle 70 T-Type drivetrain, and DB8 Stealth brakes, the Levo 4 Alloy redefines value and performance in the full-power e-MTB category.
At a Glance
Use
Full-Power Alloy E-MTB Trail
E-System
Specialized 3.1 Motor (101 Nm, 666 W) / 840 Wh Battery / Up to 5.33 hr Range
Frame
M5 Alloy Chassis / Adjustable Geometry / SWAT Internal Storage
Suspension
Front: Marzocchi Bomber Z1, 160mm
Rear: Marzocchi Bomber Inline, 150mm
Drivetrain
SRAM Eagle 70 T-Type 12-speed
Wheels
Specialized Alloy 29/27.5", DT Swiss Industry Spokes
Technical Specifications
E-Bike System
-

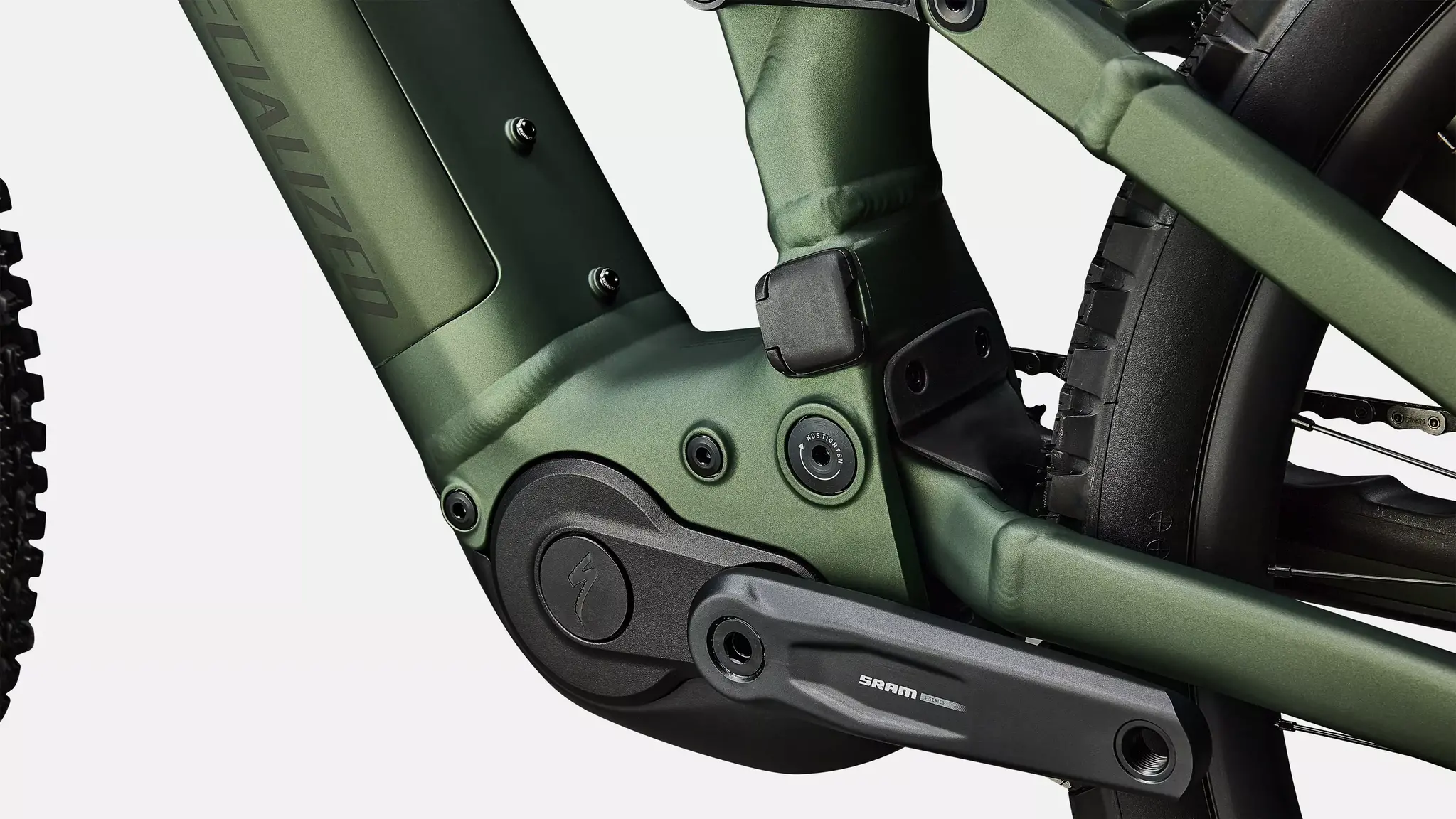

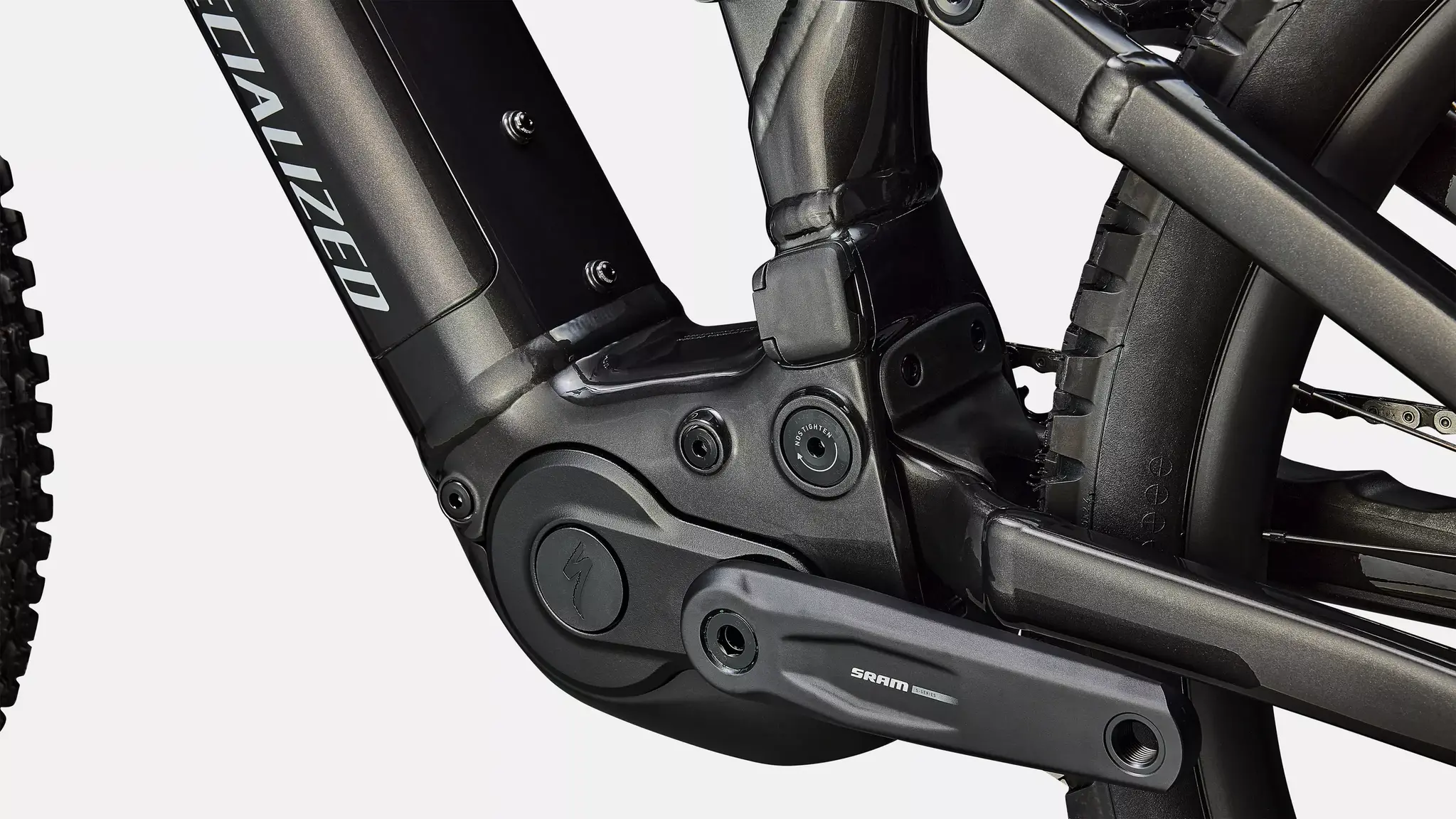

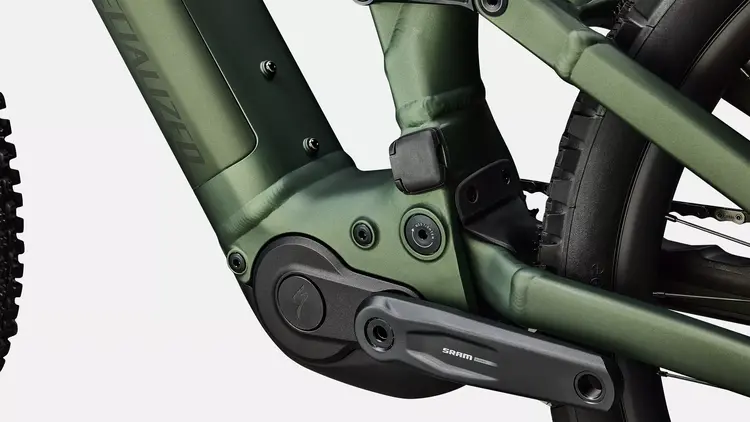

Motor: Specialized 3.1, 101 Nm torque, 666 W peak power
-
Battery: 840 Wh integrated
-
Display: MasterMind T3, 2.2” color, fully app-customizable
-
Charger: Specialized 4A
-
Certification: UL 2849 / UL 2271
Frameset
-
Frame: M5 Alloy, 150mm travel, adjustable head tube angle, chainstay, and BB height, SWAT storage, 29”/27.5” mixed-wheel setup
-
Seat Binder: Alloy, 38.6mm
Suspension
-
Fork: Marzocchi Bomber Z1, 29”, 160mm travel (S2–S6), sweep compression adjust
-
Rear Shock: Marzocchi Bomber Inline, EVOL LV, rebound adjust, 210x55mm
Brakes
-
Front: SRAM DB8 Stealth, 4-piston, 220mm rotor
-
Rear: SRAM DB8 Stealth, 4-piston, 200mm rotor
Drivetrain
-
Crankset: SRAM S1000, 155mm, ISIS interface, 34t chainring
-
Rear Derailleur: SRAM Eagle 70 T-Type
-
Cassette: XS-1270, 12-speed, 10-52t
-
Shifter: SRAM Eagle 70 Trigger, single-click
-
Chain: SRAM Eagle 70 T-Type Flattop
Wheels & Tires
-
Rims: Specialized Alloy, 30mm internal width, tubeless ready
-
Front Hub: Alloy, 15x110mm, 28h
-
Rear Hub: Alloy, 12x148mm, 32h
-
Front Tire: Butcher GRID GRAVITY T9, 29x2.4”
-
Rear Tire: Butcher GRID GRAVITY T9, 27.5x2.4”
-
Spokes: DT Swiss Industry
-
Inner Tubes: Presta valve

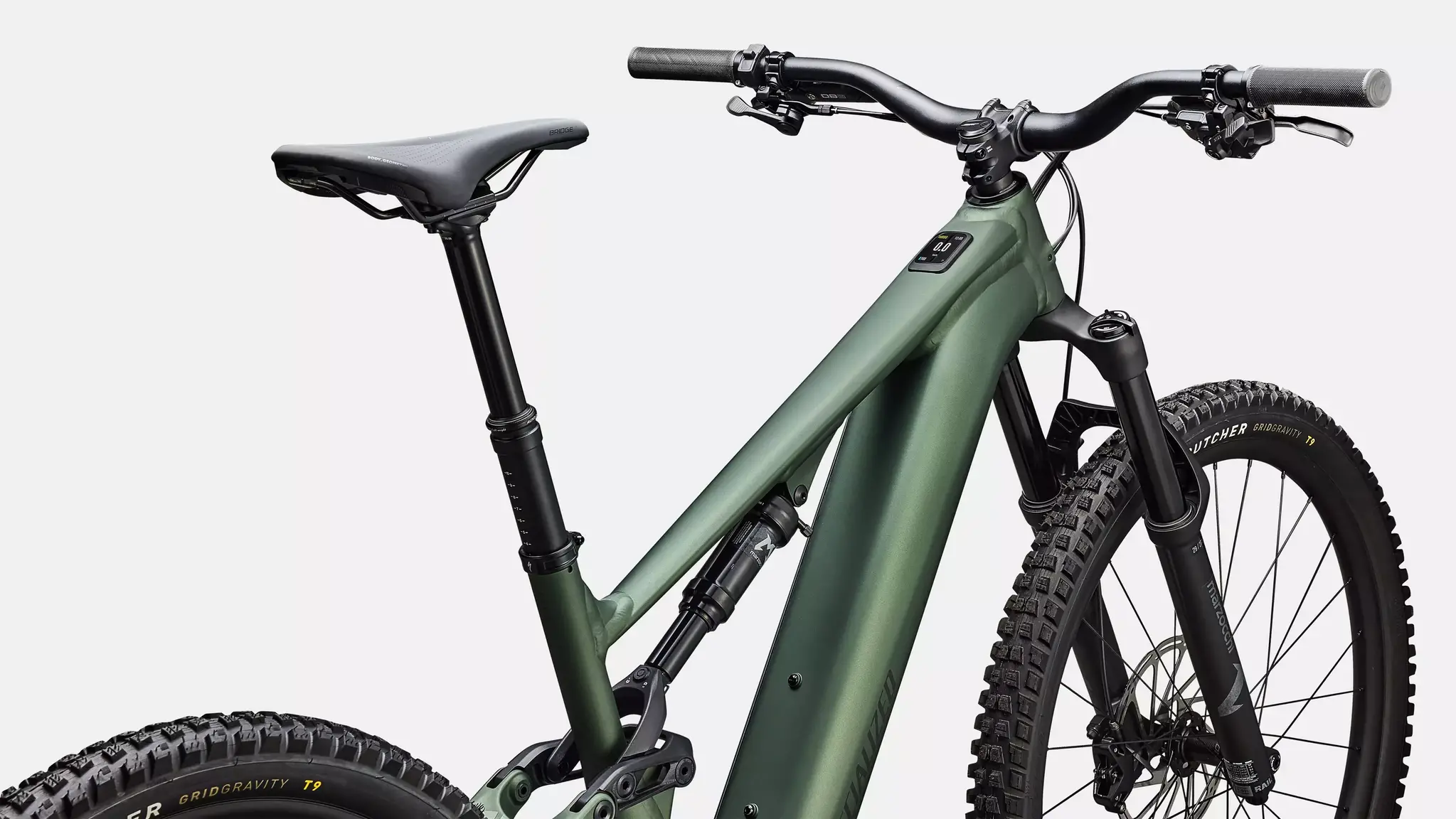

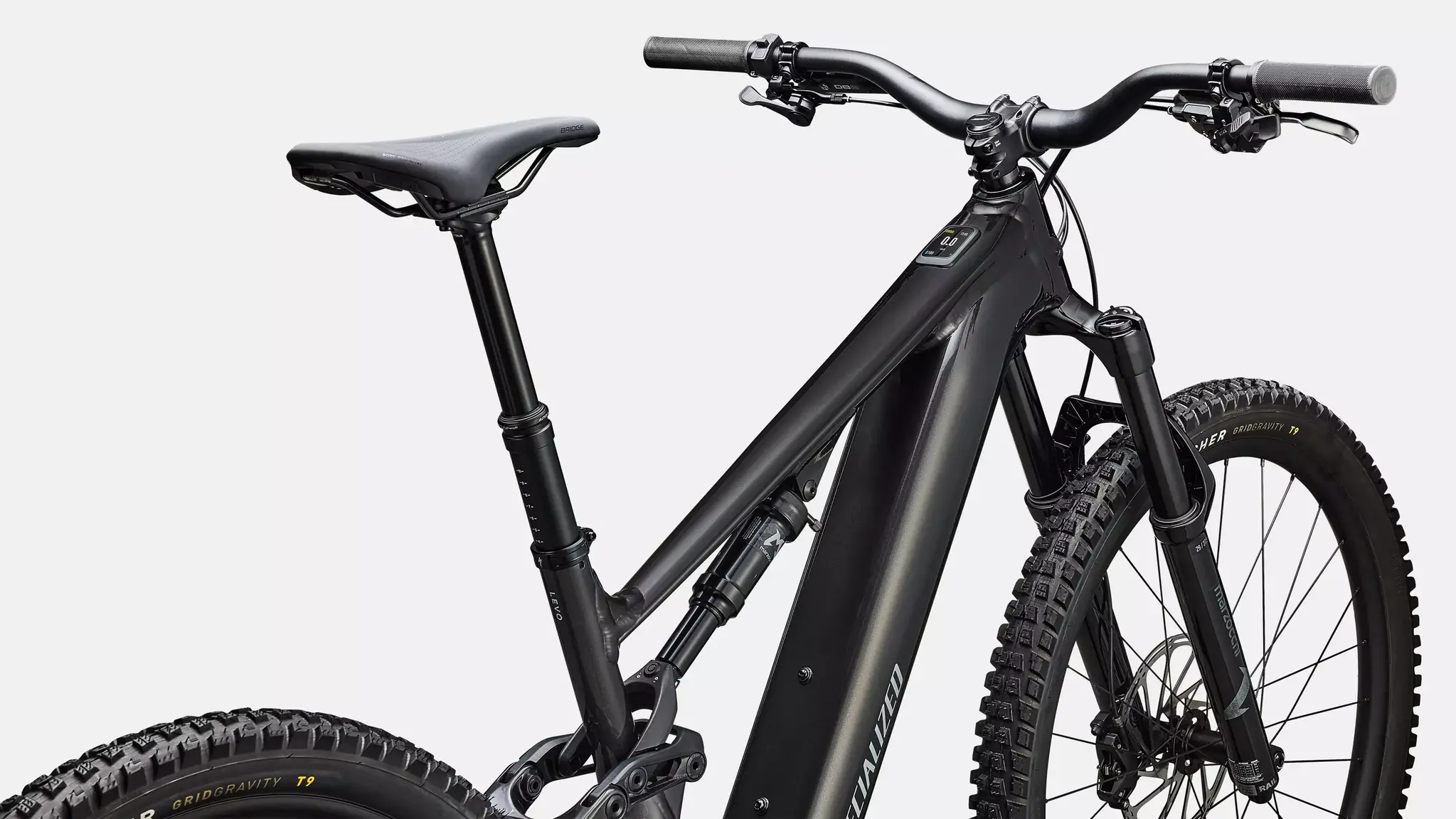

Cockpit
-
Handlebars: Specialized 6061 Alloy, 6° up / 8° back, 30mm rise, 780–800mm width
-
Stem: Alloy Trail, 35mm clamp
-
Seatpost: TranzX Dropper, 34.9mm, travel by size (100–200mm)
-
Saddle: Body Geometry Bridge, steel rails
-
Grips: Specialized Trail
Accessories
Product Details
Product ID: 221347
Compliance Certification: UL 2849 / UL 2271 (battery & e-system)
Weight
26.08 kg (57 lb, 7.8 oz) — Size S4
