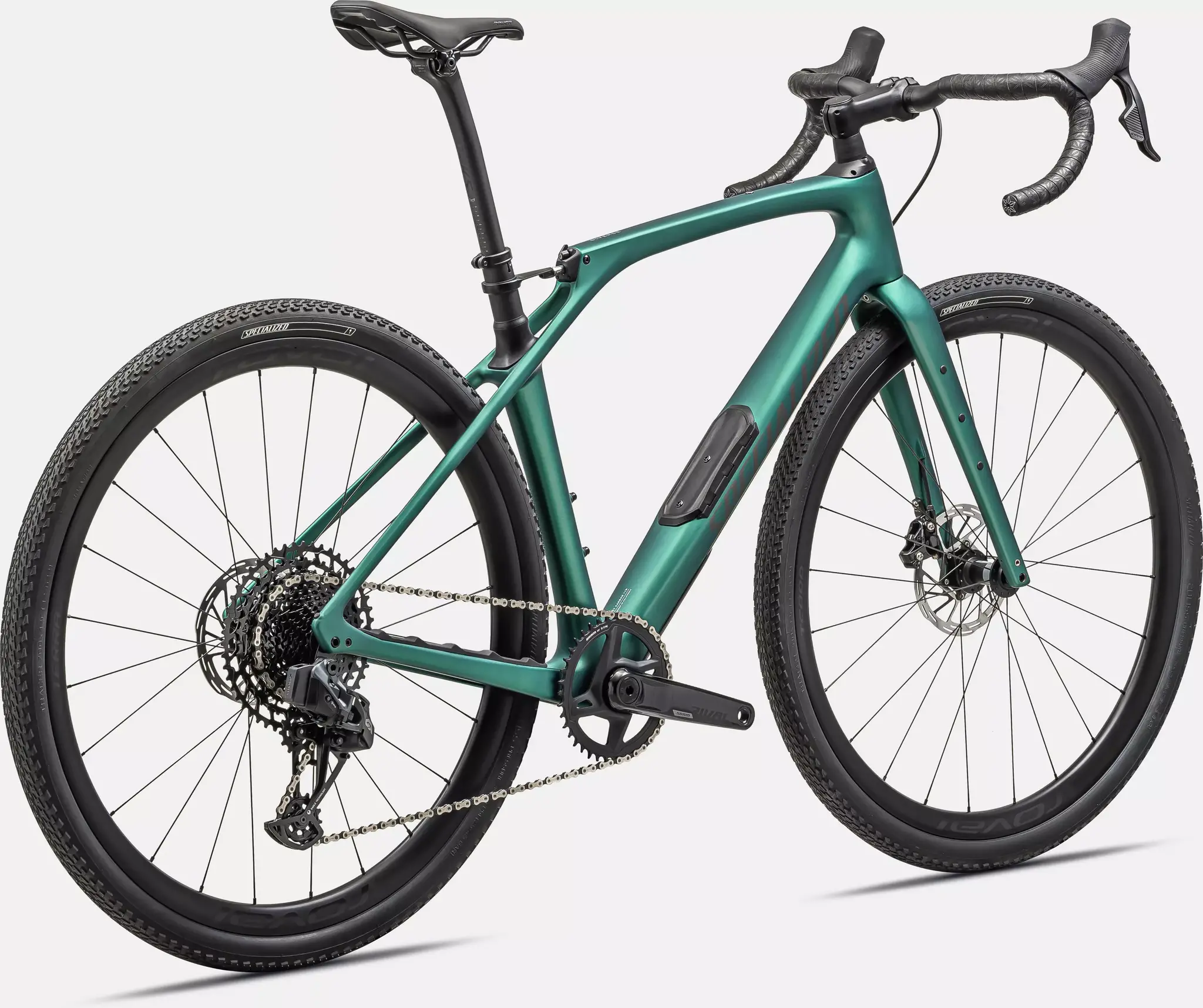

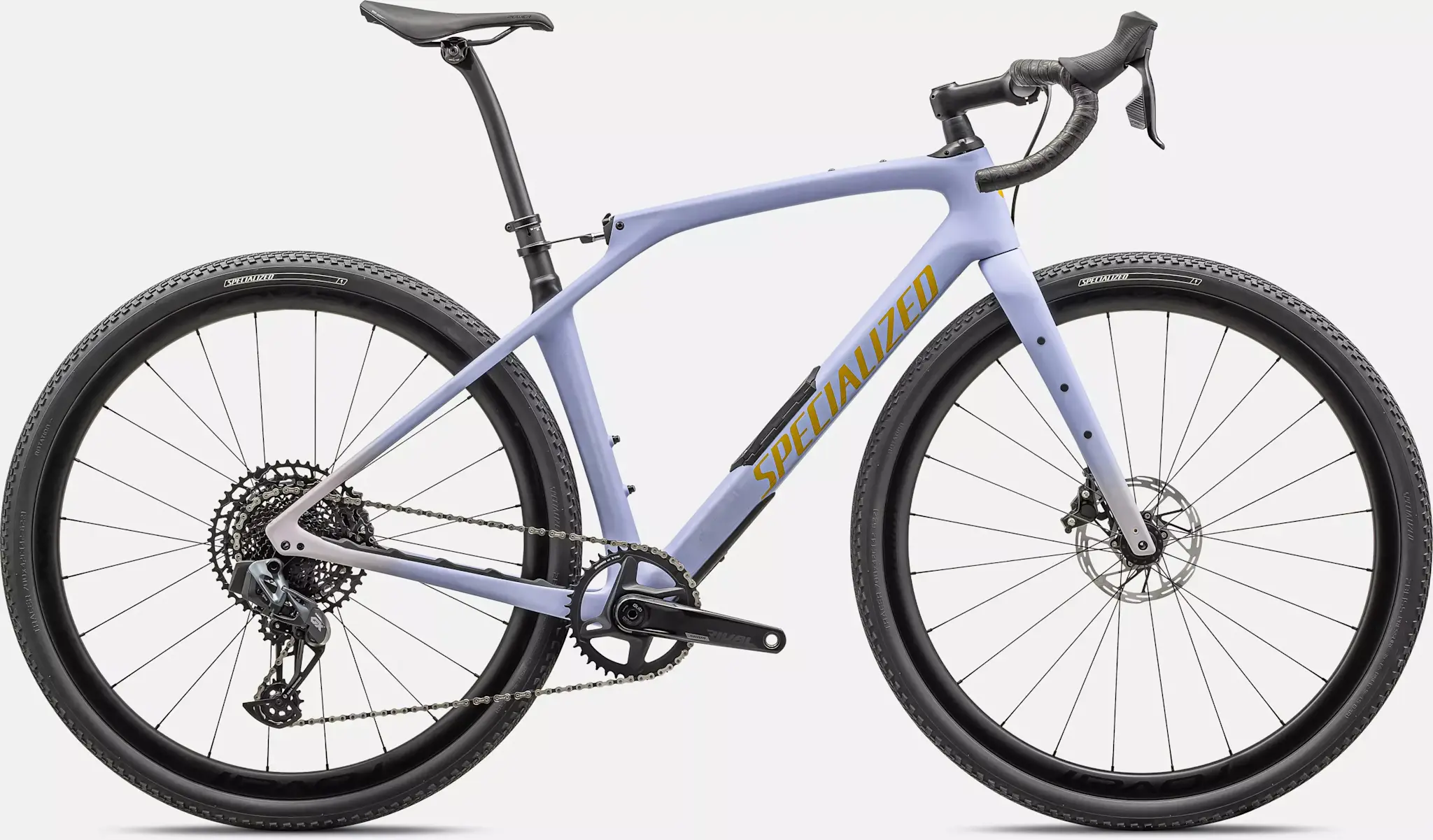

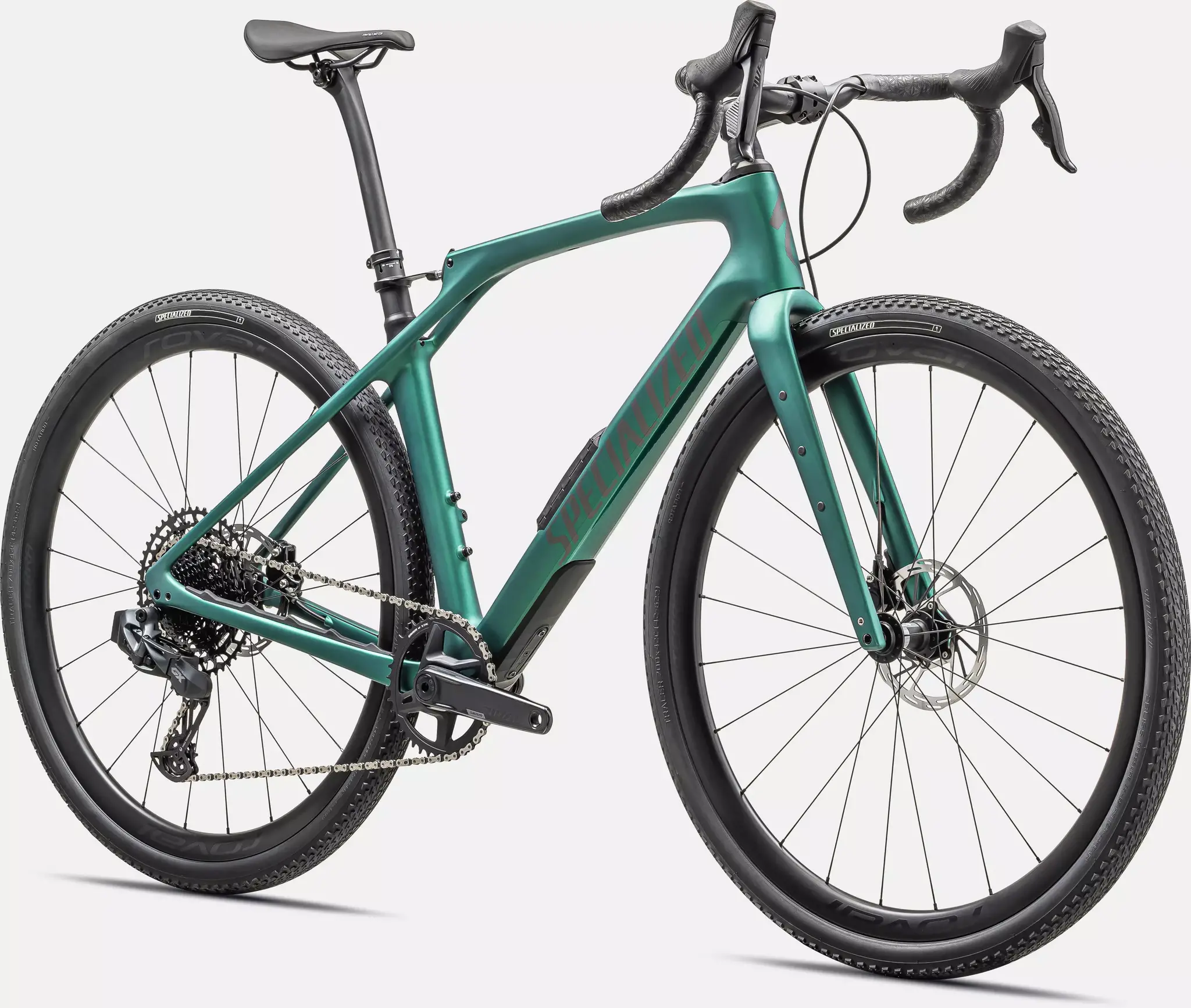

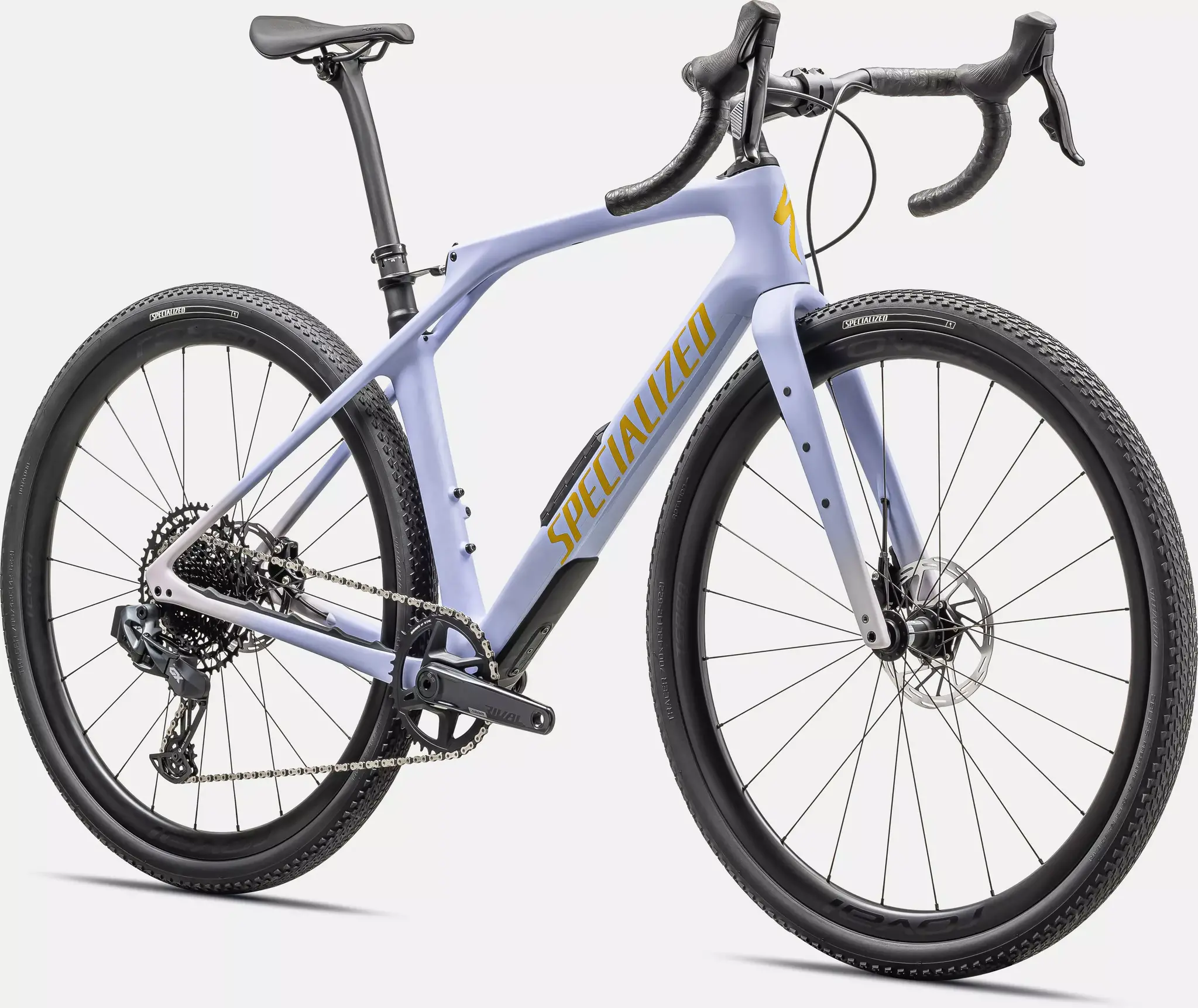

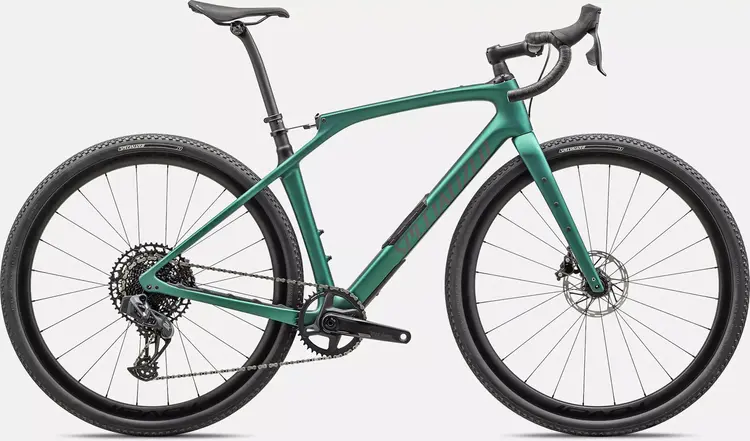

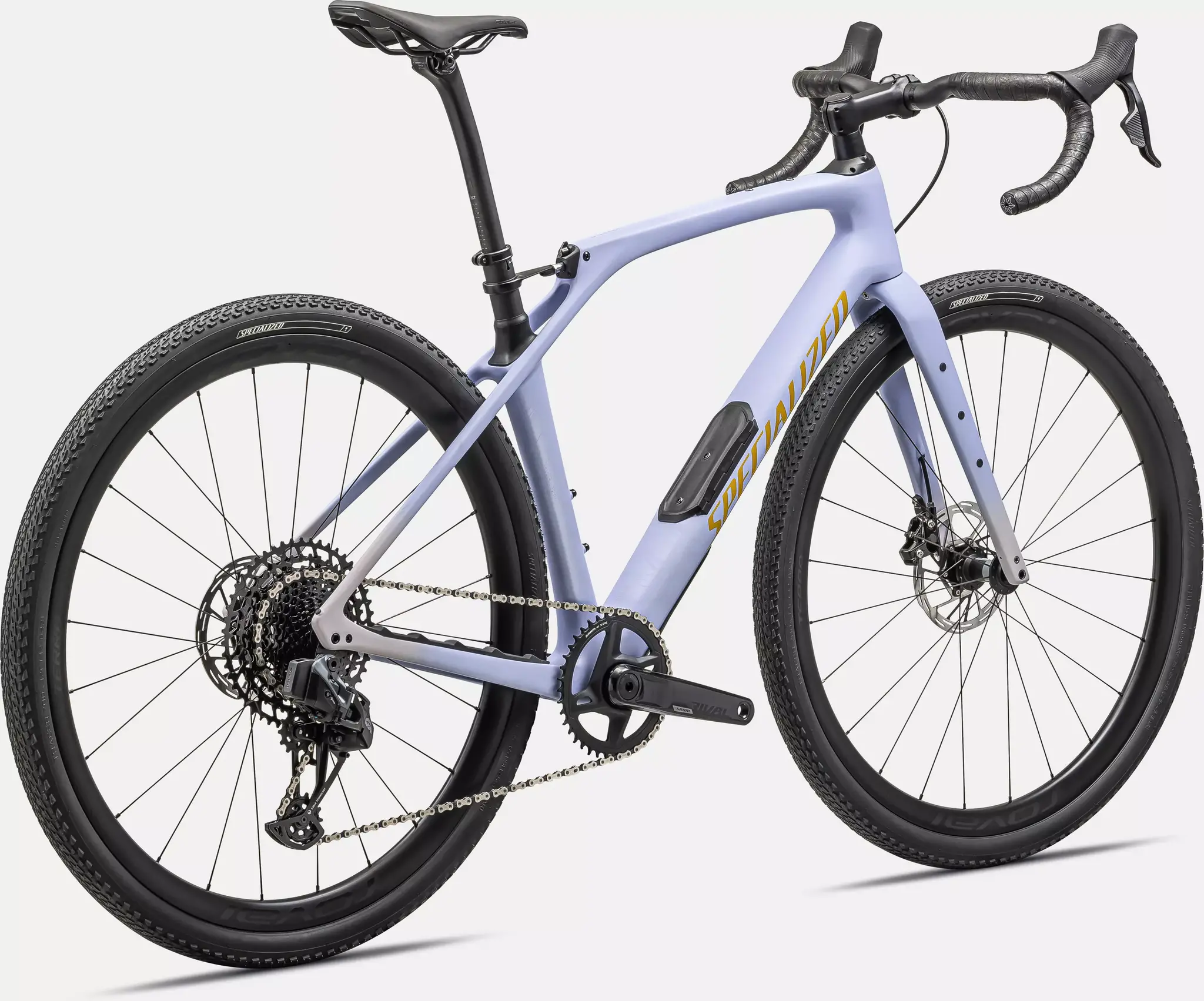

Diverge STR Expert - SRAM GX AXS

Diverge STR Expert
The Ultimate Getaway Vehicle—Reimagined

Available for special order, contact us.

With Future Shock suspension front and rear, the new Diverge STR delivers compliance without compromise. By suspending the rider—instead of the bike—Future Shock technology increases control and efficiency while reducing fatigue, letting you ride farther and faster across rougher terrain than ever before.

The Diverge STR Expert starts with our FACT 11r carbon frameset, pairing front and rear Future Shock suspension with a SRAM Rival and GX AXS drivetrain for fast, efficient shifting and a wide 10–50t gear range. Roval Terra C carbon wheels and 42mm Tracer Pro tires keep you rolling smooth and confident. Adventure Gear alloy handlebars, an S-Works carbon seatpost, and a Body Geometry Power Expert saddle complete the build—making this the most capable Diverge ever.

Technical Specification:

Use
Gravel Adventure/Race

Frameset
FACT 11r Carbon with Front & Rear Future Shock Suspension

Suspension
Future Shock 3.2 (Front) / Future Shock Rear (30mm travel)

Drivetrain/Wheels
SRAM Rival & GX AXS / Roval Terra C

Storage
Integrated SWAT Door System

Weight
Diverge STR Expert: 9.93 kg

Frame
Diverge FACT 11r carbon frameset with front and rear Future Shock suspension, SWAT™ Door integration, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc

Fork
Future Shock 3.2 w/ Damper, Smooth Boot, FACT carbon, 12x100mm thru-axle, flat-mount disc

Brakes
SRAM Rival eTap AXS, hydraulic disc (Front & Rear)

Drivetrain

• Bottom Bracket: SRAM DUB BSA 68

• Shift Levers: SRAM Rival eTap AXS

• Rear Derailleur: SRAM GX Eagle AXS w/ battery cover

• Chain: SRAM GX Eagle, 12-speed

• Cassette: SRAM NX Eagle PG-1230, 12-speed, 11–50t

• Crankset: SRAM Rival 1 Wide, 40t

Wheels & Tires

• Roval Terra C carbon rims, 25mm internal width, 32mm depth, 24h

• DT 370 hubs, Centerlock disc, DT Swiss Comp Race spokes

• Tracer Pro 2BR 700x42 tires, Tubeless Ready

• Presta valve tubes (48mm)

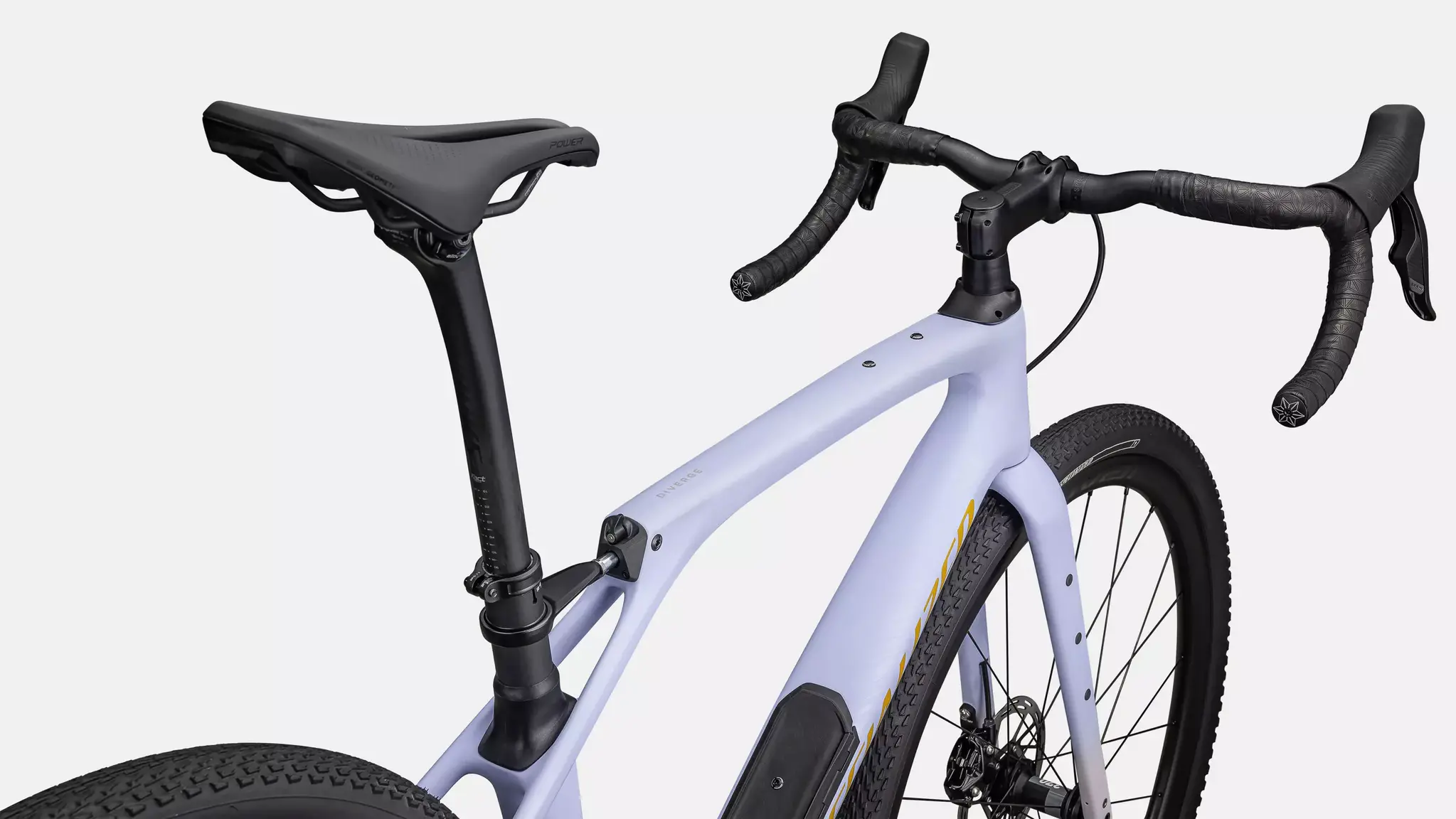

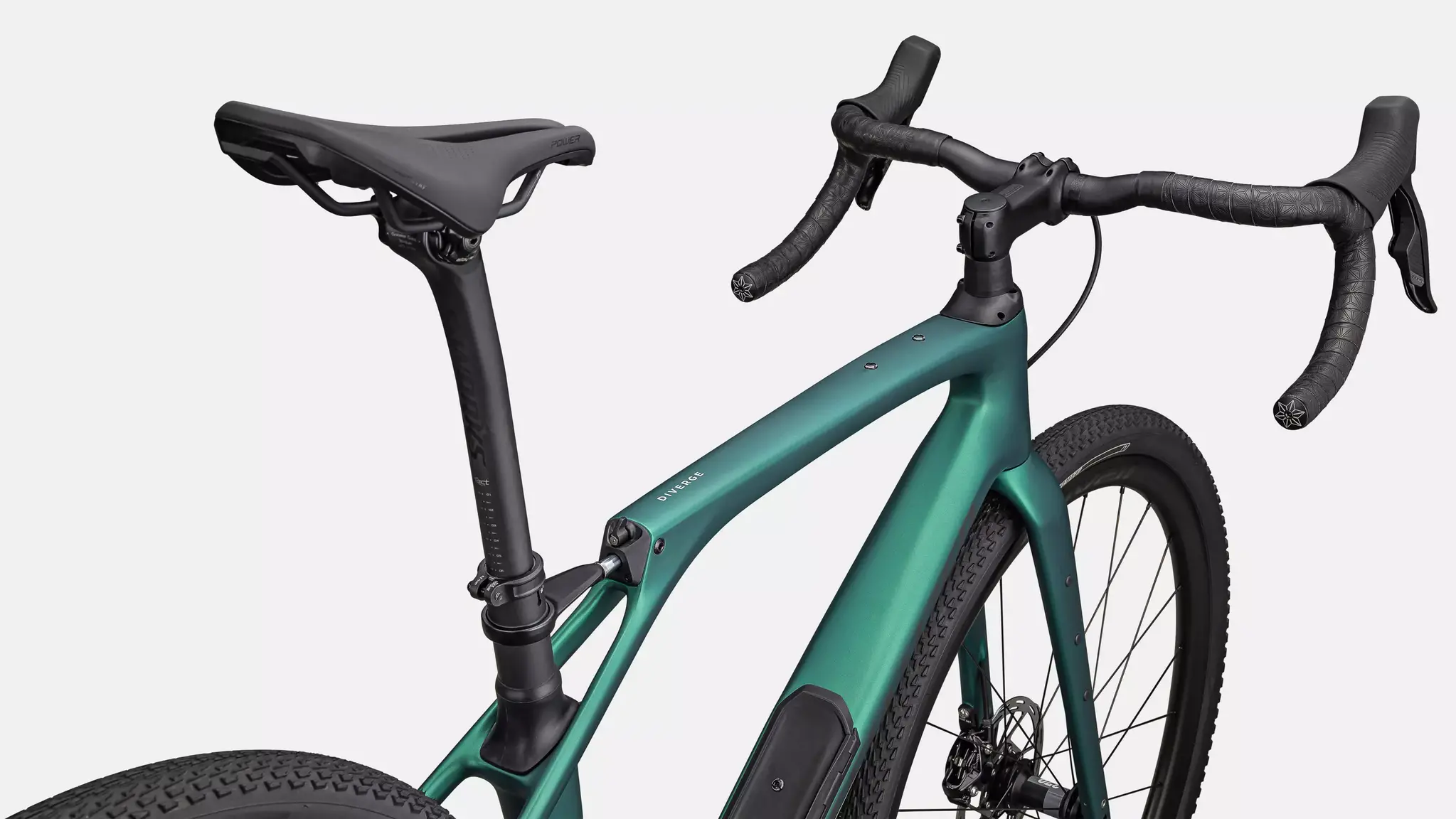

Cockpit

• Saddle: Body Geometry Power Expert

• Stem: Future Stem Comp

• Seatpost: S-Works Carbon, 20mm offset

• Seat Binder: Specialized Alloy, 33.3mm

• Handlebars: Specialized Adventure Gear Hover (103mm drop x 70mm reach x 12º flare)

• Tape: Supacaz Super Sticky Kush

Accessories
Integrated SWAT Door – Internal Storage System

Weight
Size 56 – 9.93 kg (21 lb, 14.3 oz)
